Johnson & Evinrude Outboard V6 1977-1991 150-200 Crossflow Powerhead Parts Diagrams
Explore Johnson & Evinrude V6 Crossflow 1977–1991 150-200 HP powerhead parts diagrams at OBParts. Shop OEM-grade parts—gasket sets, crankshafts, Viton carburetor kits, crankshaft seal kits, pistons, bearings, and more—for reliable outboard maintenance. Backed by competitive pricing, fast shipping, and expert product support, OBParts.com is your go-to source for Johnson/Evinrude V6 Crossflow outboard parts. Keep your boat running strong with reliable components built to handle the demands of saltwater and freshwater use.

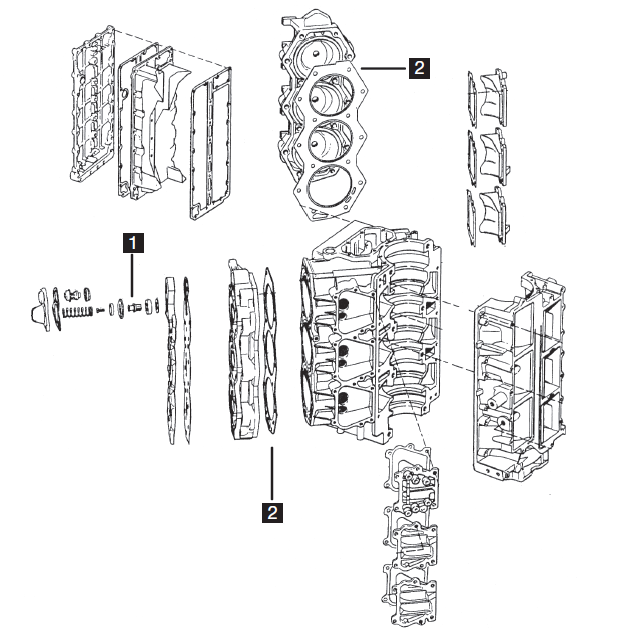

The diagram above is for a Johnson/Evinrude V6 Crossflow 150-200 HP Powerhead, Manufactured from 1977 to 1991. The following parts correspond to the numbers on this diagram:
We recommend the following kits for this powerhead:
- Gasket Set
- Fuel Pump Kit
- Viton Carburetor Kit
The diagram to the right is for a Johnson/Evinrude V6 Crossflow 150-200 HP Crankshaft Assembly from 1977-1991. The following parts correspond to the numbers on this diagram:
- Wrist Pin Bearings
- Rod Bearings
- Lower Crank Bearing
- Upper Crank Bearing
- Center Main Bearing
- Rod Bolts
We recommend the following items for this crankshaft assembly:
