Johnson & Evinrude Outboard V6 1986-2005 200-250 HP Looper Powerhead Part Diagrams

This page features powerhead part diagrams for 1986-2005 Johnson & Evinrude 200–250 HP V6 90° Looper and Ficht engines, including the 2.7L and 3.0L Sea Drive versions, as well as later 225H and 250 HP Ficht variants. Whether you are maintaining a fishing boat, repowering a work vessel, or restoring a classic outboard, OBParts.com delivers dependable solutions that minimize downtime and maximize performance. Trust our Looper & Ficht 200–250 HP powerhead parts to keep your Johnson or Evinrude running strong season after season.

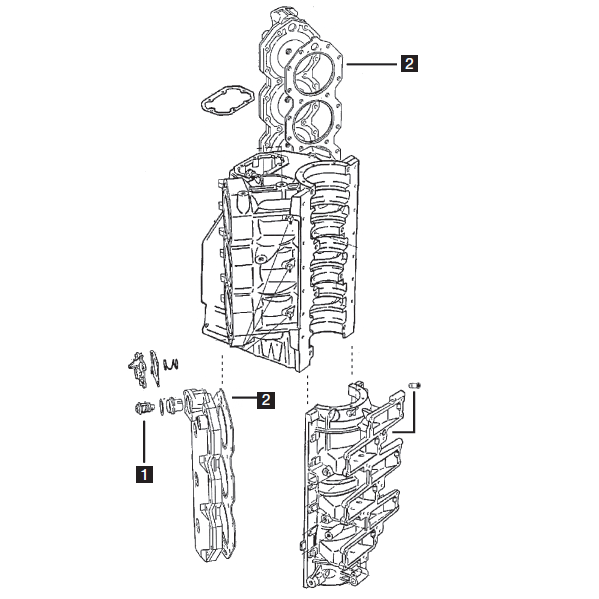

The diagram above is for a Johnson & Evinrude V6 Looper & Ficht 200-250 HP Powerhead from 1986-2005. The following parts correspond to the numbers on this diagram:

1. Thermostat
• 1985-1992
• 1993-2005 (Stainless Steel)
2. Head Gasket
• Small Bore (1986-1987)
• Big Bore (1988-1992)
• Big Bore & Ficht (C & H Suffix only)(1993-2001)
• 3.3L Ficht (1993-2005)

We recommend the following kits for this powerhead:

• Gasket Kit
• Small Bore (1986-1987)
• Big Bore Looper (1988-1992)
• Big Bore Carb Looper & 3.0L Ficht (C & H Suffix only)(1993-2001)
• V6 Looper 3.3L Ficht
• Viton Carburetor Kit

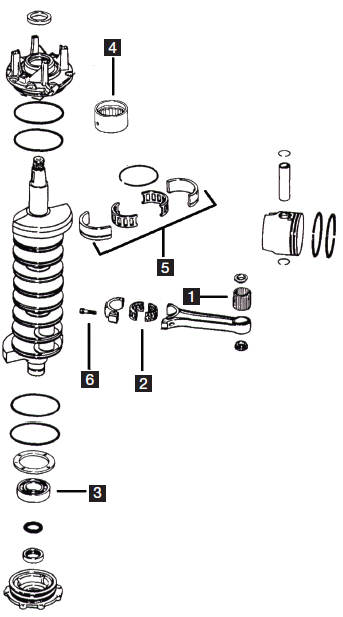

The diagram above is for a Johnson/Evinrude V6 Looper & Ficht 200-250 HP Crankshaft Assembly from 1986-2005. The following parts correspond to the numbers on this diagram:

1. Wrist Pin Bearings
2. Rod Bearings
3. Lower Crank Bearing
4. Upper Crank Bearing
5. Center Main Bearing
• with Sleeve
• without Sleeve
6. Rod Bolts

We recommend the following items for this powerhead:

• Crankshaft Seal Kit
• 1989-1991
• 1992-2005
• Piston
• Big Bore (1988-2001)
• 3.1L Looper Ficht (Except FLH & FH models)(1999-2000)
• 3.3L 90° Looper Ficht (2001-2005)
• Trim Motor
• 2-Wire (1978-1990)
• 2-Wire Fastrak with Long Leads
• 2-Wire Fastrak Ficht
• Trim Relay
• Starter
• Starter Solenoid
