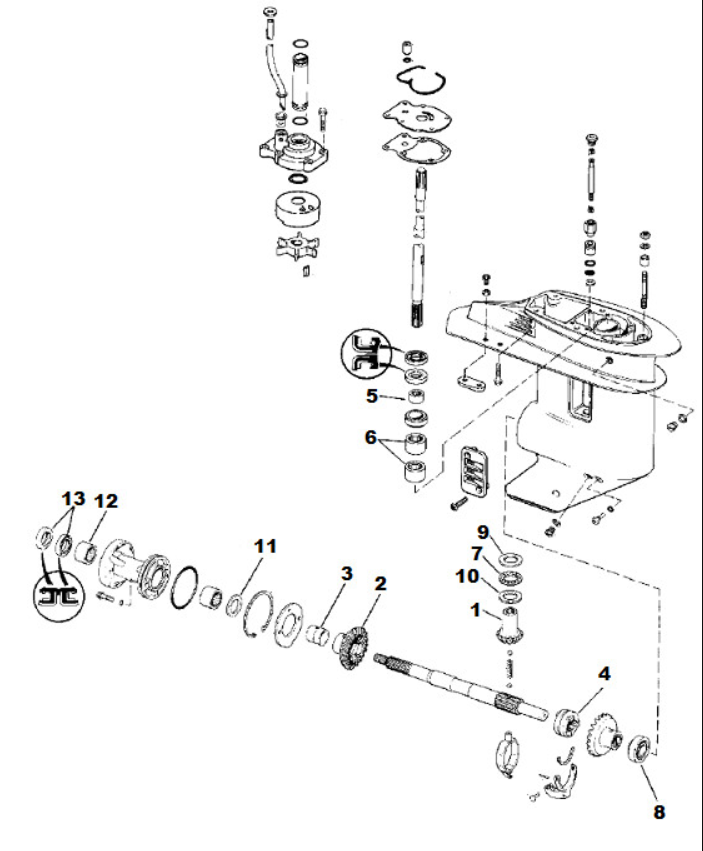

The following parts correspond to the numbers on the diagram to the right:

  1. Gear Set 15-35 HP W/ Clutch Dog
  2. Reverse Gear 20-35 HP
  3. Bushing, Reverse Gear 20-35 HP
  4. Clutch Dog 20-35 HP
  5. Bearing, Drive Shaft 20-35 HP
  6. Pinion & Propeller Shaft Bearing 15-35
  7. Thrust Bearing 15-35 HP
  8. Forward Gear Bearing 8-35 HP
  9. Thrust Washer
  10. Thrust Washer, Lower
  11. Thrust Washer
  12. Prop Shaft Bearing
  13. Driveshaft Seal 25-35 HP
